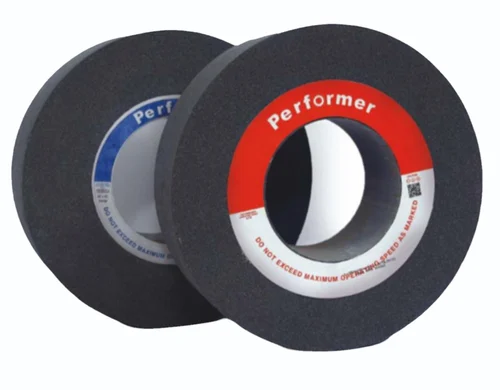

Centerless Grinding wheels

Centerless Grinding wheels​

What Are Centerless Grinding Wheels?

Centerless grinding wheels are specialized abrasive tools used in centerless grinding processes, where material is removed from cylindrical workpieces without the use of centers or spindles. The workpiece is supported between a grinding wheel and a regulating wheel, enabling high-speed and high-precision machining.

At AE Abrasives Edge, we manufacture premium-quality centerless grinding wheels engineered to deliver superior surface finish, dimensional accuracy, and consistent performance across high-volume production environments.

Enquire Now

Specifications

Size Granding Type MPS
100 X 4 X 16 A24 Q BF 27 80
100 X 6 X 16 A24 Q BF 27 80
125 X 7 X 22.23 A24 Q BF 27 80
180 X 6 X 22.23 A24 Q BF 27 80
230 X 7 X 22.23 A24 Q BF 27 80

How Centerless Grinding Wheels Work

In a centerless grinding setup:

  • The grinding wheel performs the cutting action at high speed
  • The regulating wheel controls rotation and feed rate
  • The workpiece rests on a support blade between the wheels

This setup allows continuous grinding without clamping, making it ideal for mass production.

Types of Centerless Grinding Wheels

AE Abrasives Edge offers a wide range of wheels suitable for different grinding operations:

1. Through-Feed Grinding Wheels

  • Used for straight cylindrical parts (rods, pins, tubes)
  • Enables continuous feeding for high productivity

2. In-Feed (Plunge) Grinding Wheels

  • Designed for complex shapes and multiple diameters
  • Ideal for precision components

3. End-Feed Grinding Wheels

  • Suitable for tapered or stepped components
  • Ensures controlled material removal

These methods define how the workpiece is fed during grinding and determine the required wheel specification.

Key Features of Our Centerless Grinding Wheels

At AE Abrasives Edge, our wheels are designed with advanced abrasive technology:

  • High stock removal rate
  • Excellent surface finish
  • Longer wheel life
  • Consistent cutting performance
  • Minimal vibration and thermal damage


We use premium abrasives such as:

  • Aluminum Oxide – for steel and ferrous materials
  • Silicon Carbide – for non-ferrous and brittle materials
  • CBN & Diamond – for high-precision and hard materials

Applications of Centerless Grinding Wheels

Our centerless grinding wheels are widely used in:

  • Automotive components (shafts, pistons, valves)
  • Bearing and roller manufacturing
  • Aerospace precision parts
  • Medical instruments and surgical tools
  • Steel bars, tubes, and fasteners

Centerless grinding is especially preferred for high-volume production due to its efficiency and accuracy.

Advantages of Centerless Grinding Wheels

  • High productivity with continuous operation
  • Superior dimensional accuracy and roundness
  • Reduced setup time (no clamping required)
  • Better surface finish and concentricity
  • Cost-effective for mass production

This process improves efficiency while maintaining tight tolerances in industrial manufacturing.

Why Choose AE Abrasives Edge?

At AE Abrasives Edge, we combine innovation with industry expertise to deliver high-performance grinding solutions:

  • Custom wheel specifications for your application
  • Strict quality control and consistency
  • Competitive pricing with reliable supply
  • Technical support for optimal wheel selection

We are committed to helping industries achieve maximum productivity and precision with our advanced abrasive solutions.
